| Pollution Monitoring Applications |
| Calibration of TGS Sensors |
| Hardware: |
4 modules including TGS sensors, together with their signal conditioning block |
| |
FIGARO calibration chamber, 5.54 cm3 volume |
| |
Parallel A/D DAQ system |
| |
IBM PC compatible |
| |
Kit of 10 known concentration samples for each gas |
| Software: |
Virtual voltmeter designed in Turbo Pascal 6.0 medium |
| |

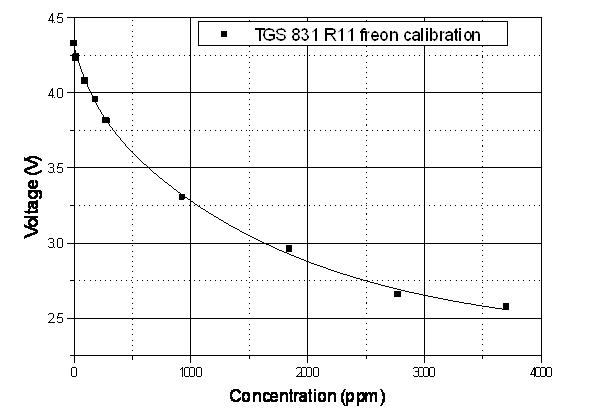

The calibration curve is drawn using Microcal Origin 3.0 |
| Education: |
The students learn to determine an unknown concentration value using the calibration curve. |
| |
They learn, also, to choose the best sensor for a given application. |
 |
|
